5 5/8 Inch Tricone Rotary Drill Bits IADC521 143mm

Product Categories
Hebei Crossing Drill Bit Manufacture Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

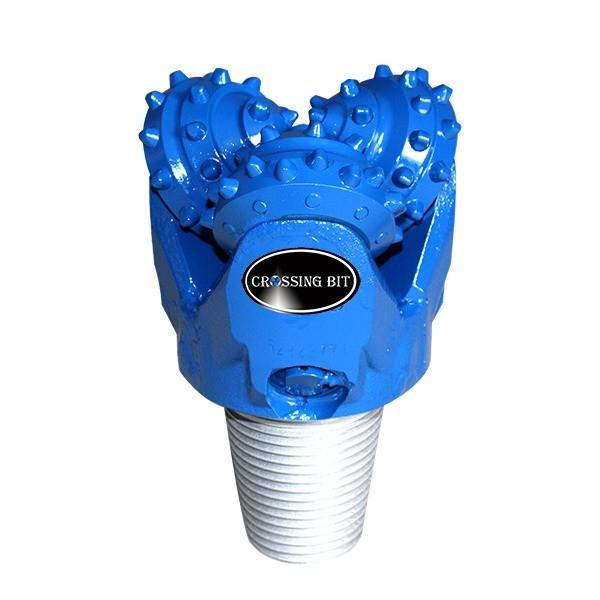

5 5/8 Inch Tricone Rotary Drill Bits IADC521 143mm

Certification : ISO9001

Place of Origin : Hebei,China

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50000PCS/Month

Delivery Time : 5-15work days

Packaging Details : According to customer needs

Cone Type : Steel Tooth

Application Formation : hard rock formation

Product : TCI tricone bit

Bit Type : Milled Tooth Bit

Usage : water, oil, gas well drilling

Teeth : Insert teeth

Bearing : metal sealed bearing

Color : Blue

Formation : hard

Teeth Type : insert button or milled tooth,saw tooth

Contact Now

During the drilling process, the drill pipe is connected to the three cone drill bit and a rotational force is applied to rotate the drill bit. When the drill bit rotates and enters the rock formation, the three cones on it begin to come into contact with the rock. Due to the helical arrangement of the gears on the teeth, they generate friction with the rock when rotating. This friction allows sharp gears to break rocks and cut them into small pieces.

PRODUCT SPECIFICATIONS

product name

5 5/8inch CR521 TCI tricone bit

size

143mm

model number

CR521

series

CR

tooth type

TCI

connection

3 1/2" Reg pin

bearing

standard open bearing

Nozzle

center jet nozzles

application

water well,oil well,HDD,exploration,etc

weight

16kg

certificate

SY/T5164,ISO9001:2008

RECOMMENDED ROCK FORMATION

soft with low compressive strength,such as shale,clay,sandstone,soft limestone,salt bed and hard gypsolyte,etc.

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION　　

Type&IADC code

417

437

447

517,527

537,547

617,627

637,647

737,837

WOB(KN/mm)

0.35~0.90

0.35~0.95

0.35~1.00

0.35~1.05

0.35~1.05

0.35~1.05

0.70~1.20

0.70~1.20

RPM(r/min)

140~70

140~60

140~60

120~50

110~40

80~40

70~40

70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
